Highcom Gaurdian 4S16
Plate Cut
Choose an option
Plate Curve
Choose an option
Size
Choose an option
Please note some popular sizes may have a lead time due to current global conflicts.
Additional Information
The Guardian 4s16™ Level IV Stand Alone ceramic plate provides rifle armor protection from armor-piercing rounds. The Standalone Multi Curve Level 4 plates are a mid weight ballistic solution that offers excellent protection at both an attractive weight and reasonable price point.
The 4S16 comes in both standard SAPI cut sizes and shooters cut, with a 10×12 shooters cut being only 6.2lbs per plate, 0.7″ thick.
Made in the USA, the 4s16 has been independently tested by an NVLAP accredited laboratory according to NIJ Standard 0101.06 level IV ballistic threats.
Specs
- Protection: Level IV Stand Alone Armor Piercing
- NIJ Standard 0101.06 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06
- RST: Rifle Special Threats Validated
- Material: Ceramic + UHMWPE
- Exterior Cover: 1000D CORDURA®, Textured Nylon
- Thinness: 0.75”

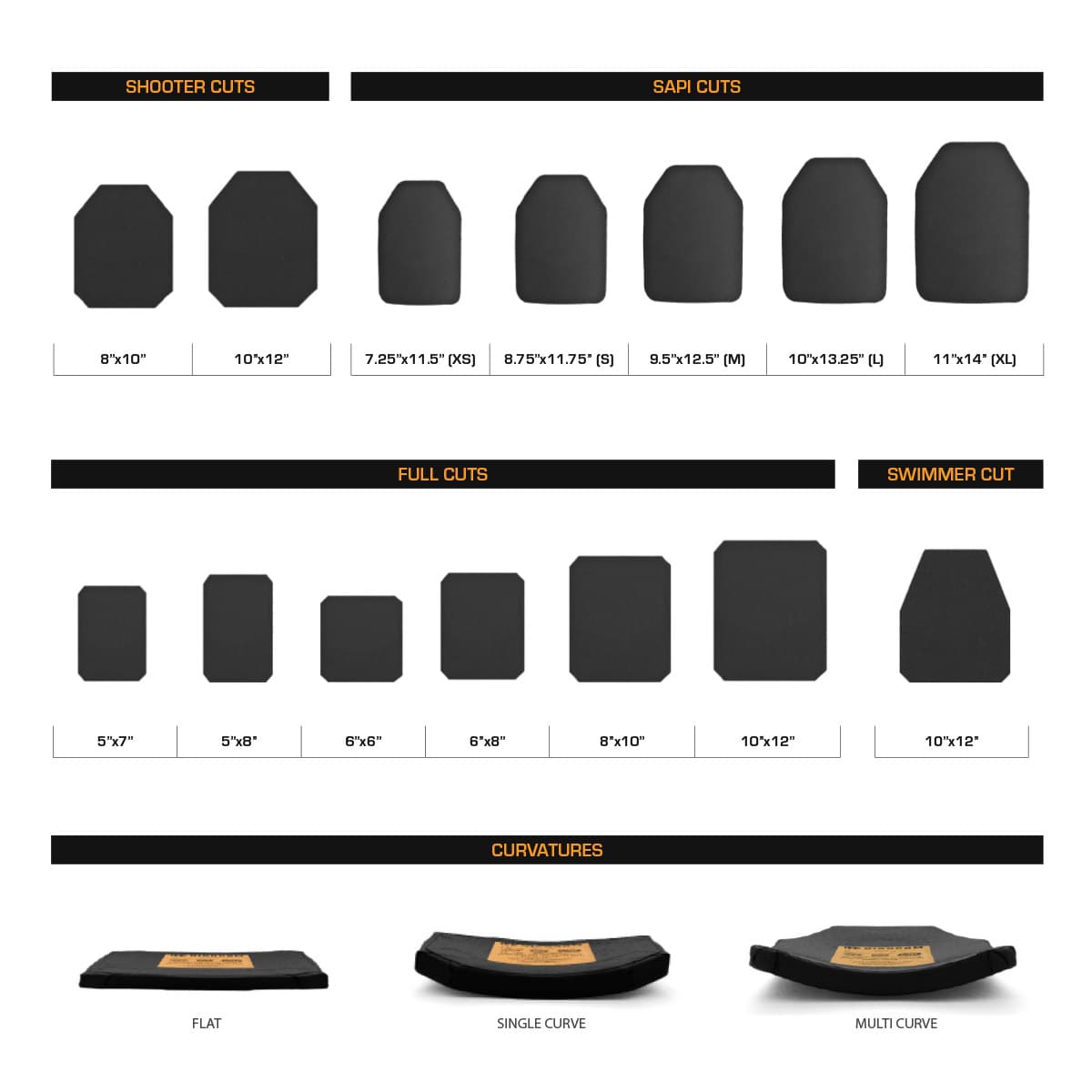

- Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
| Size | Curvature | Cut | Weight |
|---|---|---|---|
| 5 x 7 | Single Curve | Full | 2.31 lbs / 1.05 kg |
| 5 x 8 | Single Curve | Full | 2.65 lbs / 1.20 kg |
| 6 x 6 | Single Curve | Full | 2.20lbs / 1.00 kg |
| 6 x 8 | Single Curve | Full | 3.09 lbs / 1.40 kg |
| 8 x 10 | Single Curve | Full | 5.14 lbs / 2.33 kg |
| 8 x 10 | Single Curve | Shooters | 5.00 lbs / 2.27 kg |
| 10 x 12 | Single Curve | Full | 7.64 lbs / 3.47 kg |
| 10 x 12 | Single Curve | Shooters | 6.46 lbs / 2.93 kg |
| 10 x 12 | Single Curve | Swimmers | 6.61 lbs / 3.00 kg |
| 10 x 12 | Muti Curve | Shooters | 6.46 lbs / 2.93 kg |
| 7¼ x 11½ | Muti Curve | SAPI (XS) | 4.91 lbs / 2.23 kg |
| 8¾ x 11¾ | Muti Curve | SAPI (S) | 6.31 lbs / 2.86 kg |
| 9½ x 12½ | Muti Curve | SAPI (M) | 7.31 lbs / 3.32 kg |
| 10 x 13¼ | Muti Curve | SAPI (L) | 8.38 lbs / 3.80 kg |
| 11 x 14 | Muti Curve | SAPI (XL) | 9.24 lbs / 4.19 kg |
